Working Principle of A Water Level Indicator

The working principle of a water level indicator is based on detecting the presence or absence of water at different levels in a tank and converting that into a visual or audible signal. Here’s how it works in detail:

💧 Basic Working Principle

A water level indicator uses conductivity, float switches, or sensors to monitor water levels. When the water touches a sensor or float:

It completes or interrupts an electrical circuit.
This triggers an LED display, buzzer, or control panel to show the water level.
It may also automatically turn the pump ON or OFF.

⚙️ Common Types and How They Work

Type	Working Mechanism
Conductive Type	Uses electrodes at different heights. Water conducts electricity to complete circuits.
Float Switch Type	Uses floating balls attached to switches. When water lifts the float, it toggles the switch.
Ultrasonic Sensor	Emits sound waves. Measures time delay for echo to determine water height. No contact needed.
Pressure Sensor	Measures pressure at the tank bottom (more water = more pressure).
Capacitive Sensor	Senses changes in dielectric constant due to water level around the probe.

🔌 Basic Circuit Example (Conductive Type)

Components:

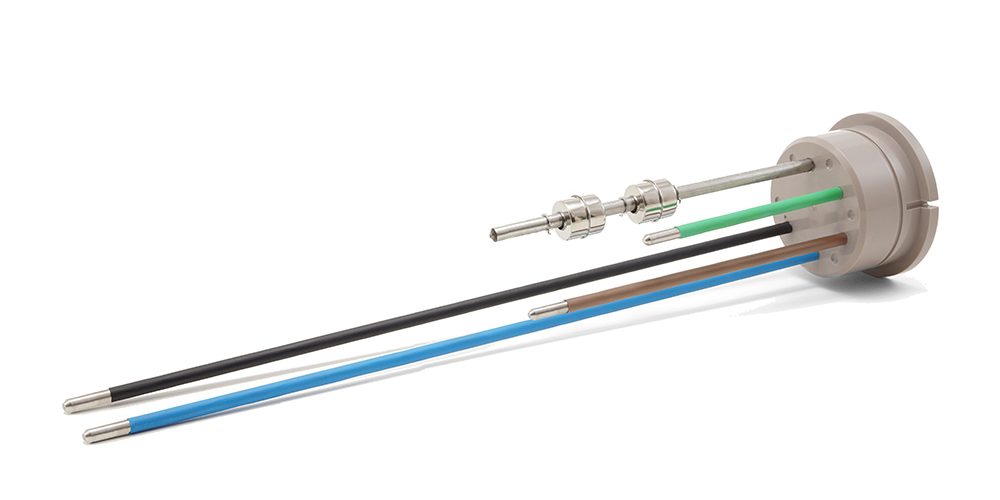

Metal probes (for Low, Medium, High levels)
Transistor switches or relays
Power source (e.g., 5V–12V DC)
LEDs or buzzers for indication

Principle:

Water bridges the gap between probes.
Current flows → transistor conducts → LED lights up.

🏡 Use Cases

Overhead tanks: Prevent overflow or dry running of pump.
Underground tanks: Control filling based on demand.
Industrial processes: Ensure consistent liquid levels in reservoirs.

✅ Advantages

Prevents pump burnout.
Avoids overflow or water wastage.
Provides real-time monitoring.
Simple and cost-effective to install.

While water level indicators are very useful, they also come with some disadvantages depending on the type and design. Here’s a breakdown:

⚠️ Disadvantages of Water Level Indicators

Issue	Description
Sensor Corrosion (Conductive Type)	Metal probes in water may corrode over time, reducing accuracy and lifespan.
False Readings	Minerals, algae, or debris can cause incorrect signals (e.g., water detected when dry).
Electrical Hazard	Poorly insulated circuits near water pose a risk of short-circuits or shocks.
Maintenance Required	Periodic cleaning and testing needed, especially in hard water environments.
Limited to Specific Liquids	Most sensors are calibrated for clean water only—not ideal for chemicals or waste water.
Power Dependence	Devices need electricity. In a power outage, they stop working unless battery-backed.
Mechanical Float Issues	Float-based systems can get stuck due to dirt, rust, or mechanical failure.
Installation Constraints	Retrofits in old tanks or deep underground systems can be difficult or costly.
Interference (Ultrasonic Type)	Steam, splashes, or foam can cause inaccurate readings.
Cost (Advanced Types)	Ultrasonic or capacitive sensors are more expensive than basic float or probe systems.

🧰 Tips to Minimize Disadvantages

Use stainless steel or corrosion-resistant probes.
Choose sealed electronics and waterproof enclosures.
Opt for self-cleaning or anti-fouling sensors in harsh environments.
Combine with manual inspection periodically.
For critical systems, install redundant indicators or alarms.

🧪 Sensor Types:

Sensor Type	Working Method	Notes
Float Switch	Mechanical; float rises/falls with water	Simple and cost-effective
Conductive Probe	Uses water’s conductivity to complete circuits	Only works with clean, conductive liquids
Ultrasonic Sensor	Sends sound waves to detect distance to water surface	No physical contact, accurate
Pressure Sensor	Detects water depth by measuring pressure	Often used in deep tanks
